Outback PSX-240 Transformer

The OutBack PSX-240 auto transformer can be used for step-up, step-down, generator and split phase output balancing or as a series stacked inverter to load balancing auto-former.

The PSX-240 incorporates a transformer with 120 volt/30 amp primary and secondary side, a temperature activated cooling fan and a 25 amp dual breaker in a steel enclosure.  The PSX-240 is ready to install in your custom application.

Applications

 Stepup



 Stepdown



 Generator Balancing



 Outback Inverter Balancing





 pictures copy write and courtesy of Outback power

PSX Specifications

Nominal AC Input Voltage: 120 or 240 VAC
Nominal AC Output Voltage: 240 or 120 VAC
Maximum rated output power: 6kVA

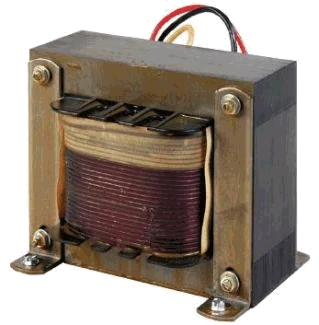

Outback X-240

The X-240 is also available without the enclosure, for installation inside the PS2AC or PS4AC enclosures.

The X-240 is rated for 4000 watts and requires with a dual pole 25 amp circuit breaker. If used with the optional fan to keep it cool, its capacity increases to 6000 watts and requires a 35 amp breaker.

For 120 or 240 VAC 60 Hz single phase systems only.
