Midnite KID
Midnite Brat


MidNite Solar is an innovative manufacturing company led by Robin Gudgel that started by making high quality, cost effective AC and DC disconnect boxes for the alternative energy industry.  MidNite now produces a wide range of alternative energy products.

MidNite’s Classic series of Maximum Power Point Tracking (MPPT) charge controllers are the most powerful, full featured controllers on the market as well as being the only ETL listed controllers designed to work with Solar, Wind, and Micro Hydro Electric systems.

Midnite Solar Classic Features

  • 150, 200 and 250V operating voltages.
  • 12-72V battery charging standard with models up to 120V battery bank
  • parallel operation fro multiple Classic systems
  • Built in DC-GFP (Ground Fault Protection)  and Arc Fault Detector
  • Solar, wind and hydro MPPT modes
  • Ethernet, USB and RS232  Full internet capability for online status monitoring
  • Remote and local displays possible
  • 20 megs of data logging - 380 days of daily history, 24 hours of data at 5 minute intervals
  • ETL listed in Canada and the USA
  • Designed, made and supported in America

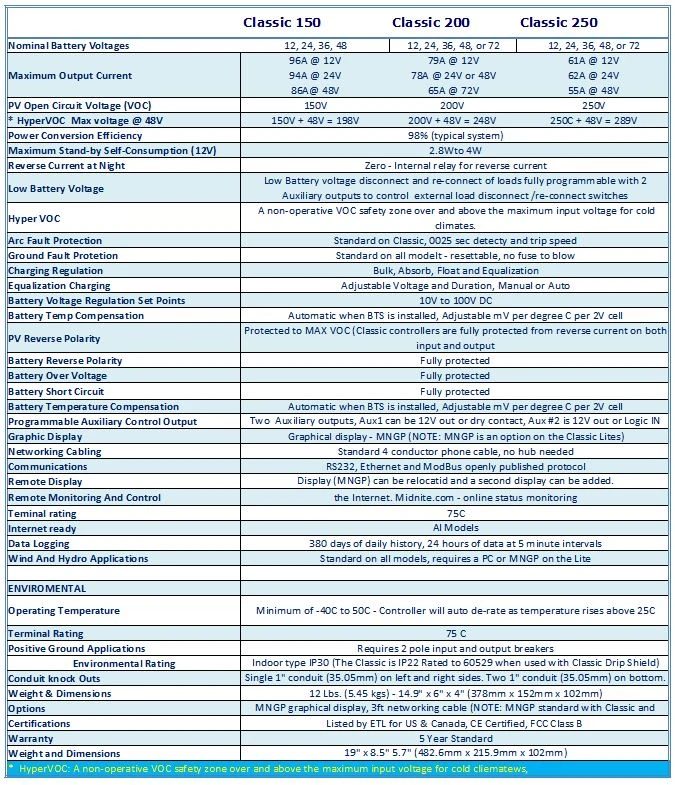

  Classic 150 Classic 200 Classic 250
Nominal Battery Voltages 12, 24, 36, 48 12, 24, 36, 48, or 72 12, 24, 36, 48, or 72
Maximum Output Current 96A @ 12V
94A @ 24V
86A@ 48V
79A @ 12V
78A @ 24V or 48V
65A @ 72V
61A @ 12V
62A @ 24V
55A @ 48V
43A @ 72V
PV Open Circuit Voltage (VOC) 150V 200V  250V
Power Conversion Efficiency 98% (typical system)
Maximum Stand-by Self-Consumption (12V) 2.8Wto 4W
Reverse Current at Night  Zero - Internal relay for reverse current
Low Battery Voltage Low Battery voltage disconnect and re-connect of loads fully programmable with 2 Auxiliary outputs to control  external load
disconnect /re-connect switches
Hyper VOC   A non-operative VOC safety zone over and above the maximum input voltage for cold climates.
Charging Regulation Bulk, Absorb, Float and Equalization
Equalization Charging Adjustable Voltage and Duration, Manual or Auto
Battery Voltage Regulation Set Points  10V to 100V DC
Battery Temp Compensation
Automatic when BTS is installed, Adjustable mV per degree C per 2V cell
Programmable Auxiliary Control Output
2 Auxiliary outputs, Aux1 can be 12V out or dry contact,
Aux2 is 12V out or Logic IN
Graphic Display
Graphical display - MNGP (NOTE: MNGP is an option on the Classic Lites)
Networking Cabling Standard 4 conductor phone cable, no hub needed
RS232, Ethernet and ModBus openly published protocol
Internet Ready
All Models
Remote Monitoring And Control Local Application software included allows viewing and control from the network or over the Internet.
MyMidNite.com - online status monitoring
Data Logging
380 days of daily history, 24 hours of data at 5 minute intervals
Wind And Hydro Applications
Standard on all models, requires a PC or MNGP on the Lite
Arc Fault Protection
Standard on Classic, 0.25 second detect and trip speed
- Not available on the Lite
Ground Fault Protection
Standard all models - re-settable, no fuse to blow
Battery Temperature Compensation
Automatic when BTS is installed, Adjustable mV per degree C per 2V cell
PV & Battery Reverse Polarity
Protected to Max VOC
Battery Over Voltage
Fully protected
Battery Short Circuit
Fully protected
Operating Temperature
Minimum of -40C to 50C - Controller will auto de-rate as temperature rises above 25C
Terminal Rating
75 C
Positive Ground Applications
Requires 2 pole input and output breakers
Environmental Rating
Indoor type IP30 (The Classic is IP22 Rated to 60529 when used with Classic Drip Shield)
Conduit knock Outs
Single 1" conduit (35.05mm) on left and right sides. Two 1" conduit (35.05mm) on bottom. Two 3/4" conduit (27.76mm) on back.
Weight & Dimensions
12 Lbs. (5.45 kgs) - 14.9" x 6" x 4" (378mm x 152mm x 102mm)
MNGP graphical display, 3ft networking cable (NOTE: MNGP standard with Classic and optional with the Classic Lite)
Listed by ETL for US & Canada, CE Certified, FCC Class B
5 Year Standard
