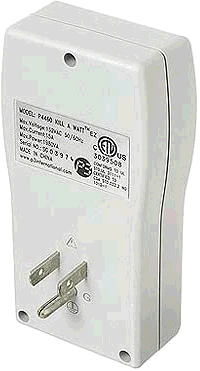

Kill A Watt Meter
This is low-cost,
watt-hour meter that will help you determine which of your small appliances are
keepers and which appliances should be placed on a switch or power bar because
the consume electricity when they're off.
Connect your appliances
into the Kill A Watt™, and assess how efficient they are. A large LCD display
counts consumption by the Kilowatt-hour just like utility companies. You can
figure out your electrical expenses by the hour, day, week, month, even an
entire year. Monitor the quality of your power by displaying Voltage, Line
Frequency, and Power Factor.
The meter
measures AC volts, AC amps, watts, volt-amps, frequency, power factor,
kilowatt-hours (up to 9,999 KWH), and elapsed time (up to 9,999 hours).
Specifications
|
Function |
Normal
|
Maximum |
|
RMS Voltage (Vrms)
|
0.2% |
1.0% |
|
RMS Current (Arms) |
0.3% |
1.0% |
|
Watts (W) |
0.5% |
2.0% |
|
Volt-amps (VA) |
0.5% |
2.0% |
|
Frequency (Hz) |
±0.1 |
±1.2 |
|
Power Factor (PF)
|
±0.01 |
±0.03 |
|
Kilowatt Hours (KWH)
|
0.5% |
2.0% |
|
