Unique DC Powered Refrigerators
(scroll down for pictures)

MODEL: UGP-470L1 UGP-370L1 UGP-290L1 UGP-260L1 UGP-170L1 UGP-175L UF R
            Upright Freezer
SIZE: 470 litres / 16.6 cu. ft. 370 litres /  13.0 cu. ft. 290 litres / 10.3 cu. ft. 260 litres / 9.0 cu. ft. 270 litres / 6.0 cu. ft. 175 litres / 6.1 cu. ft.

OPERATION 12 or 24V: 24V only 12/24V  12/24V  12/24V  12/24V  12/24V

DIMENSIONS unboxed: H 74.5” x W 30.5” x D 28.5” H 66.9”x W 23.8” x D 24.5” H 61” x W 24” x D 27” H 64” x W 21.4” x D 22.4” H 50.5” x W 19.2” x D 22.8” H 56.6” x W 21” x D 24”
  H 189 x W 77.5 x D 72.4 cm H 170  W 60.5 x D 62.2 cm H 155 x W 61 x D 68.6 cm H 162.5 x W 54.4 x D 57 cm H 128.3 x W 48.7 x D 58 cm H 143.8 x W 53.4 x D 61 cm

WEIGHT: 90.7 kg. /200 lbs. 60.5 kg. / 133.4 lbs. 136.7 lbs. / 62 kg 93 lbs. / 42 kg 76 lbs. / 34.5 kg 102.5 lbs. / 46.5 kg

TOTAL WATT HR DRAW 865 Whr. in 24 hrs.  587 Whr./ 24 hrs 524 Whr./ 24 hrs 572 Whr./ 24 hrs 520 Whr./ 24 hrs 532 Whr./ 24 hrs

TOTAL AMP HR DRAW 28 Ahr. in 24 hrs. @24V 24.5 Ahr. in 24 hrs. @24V 24 Ahr/ 24 hrs @ 24V 24 Ahr/ 24 hrs @ 24V 19.8 Ahr/ 24 hrs @ 24V 17 Ahr/ 24 hrs @ 24V

AV. RUN CURRENT: 6.2 A @24V  5.2 A @24V  4.5A@12V  || 2.5A@24V 4.5A@12V || 2.5A@24V 4.3A@12V || 2.2A@24V 4.9A @12V || 2.5A@24V
POWER CONSUMPTION: 148 W @ 24V 62 W @ 24V 56 W @ 12V 56 W @ 12/24V 52 W @ 12/24V 61W @ 12/24V

FRIDGE TEMP. RANGE: - 2°C to +20°C - 4°C to +10°C -2˚C to +10˚C -4˚C to +10˚C -4˚C to +10˚C freezer only
FREEZER TEMP. RANGE:  down to -25C  up to +20C - 15°C to +6°C down to - 25°C - 15°C to +6°C - 15°C to +6°C -26˚C to -6˚C

Features:

• Efficient construction features 4” (10 cm) of insulation in the freezer and 2.5” (10 cm) of insulation in the freezer and 2.5” (6 cm) in the fridge

• Danfoss/Secop compressor - the world’s leading DC compressor (2 year warranty)

  • Has an in-line fuse for protection
  • Thermostat
  • Adjustable heavy-duty wire shelves
  • Storage basket
  • Vertical can holder
  • Interior light
  • Smaller DC refrigerators

    MODEL: UGP-108L1 UGP-50L1

    SIZE: 108 litres / 3.3 cu. ft. 50 litres /  1.8 cu. ft.

    OPERATION 12 or 24V: 12/24V  12/24V

    DIMENSIONS unboxed: H 32.4” x W 21.3” x D 22.8” H 30.3”x W 26.4” x D 23”
      H 82 x W 54 x D 58 cm H 77  W 67 x D 58.4 cm

    WEIGHT: 29 60.5 kg. / 65 lbs.

    TOTAL WATT HR DRAW 445 Whr. in 24 hrs.  278 Whr./ 24 hrs

    TOTAL AMP HR DRAW 14.5 Ahr. in 24 hrs. @24V 20 Ahr. in 24 hrs. @24V

    AV. RUN CURRENT: 4.1 A @12V   2.1 @24V
    POWER CONSUMPTION: 49 W @ 12/24V 27 W @ 12/24V

    FRIDGE TEMP. RANGE: - 4°C to +10°C - 20°C to +20°C
    FREEZER TEMP. RANGE:  - 15°C to +6°C - 20°C to +20°C

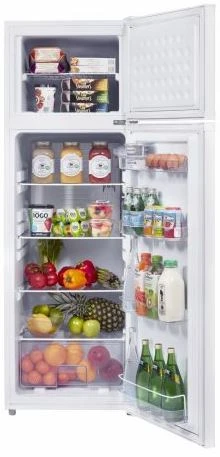

    UGP-260L

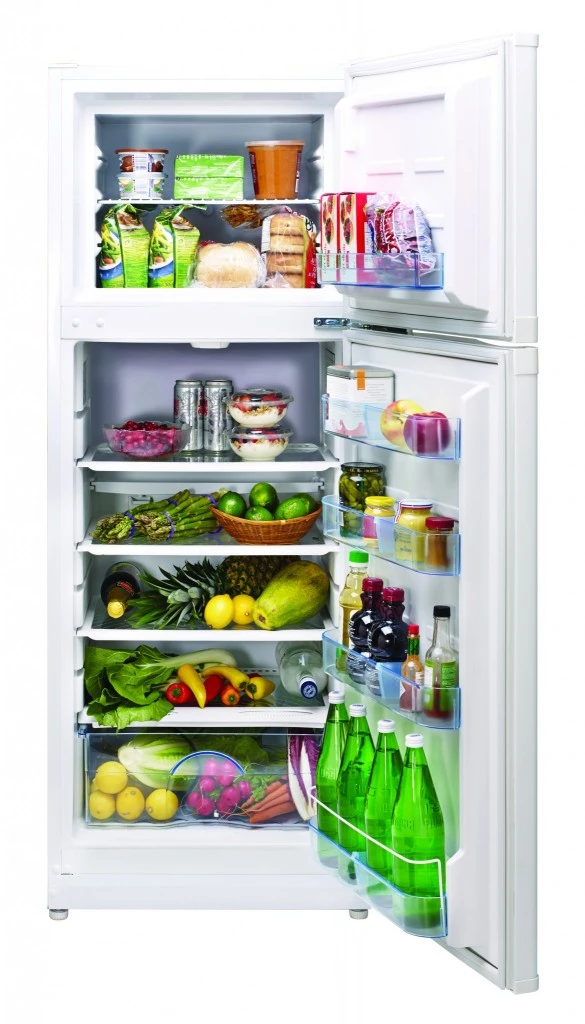

    UPG-290L

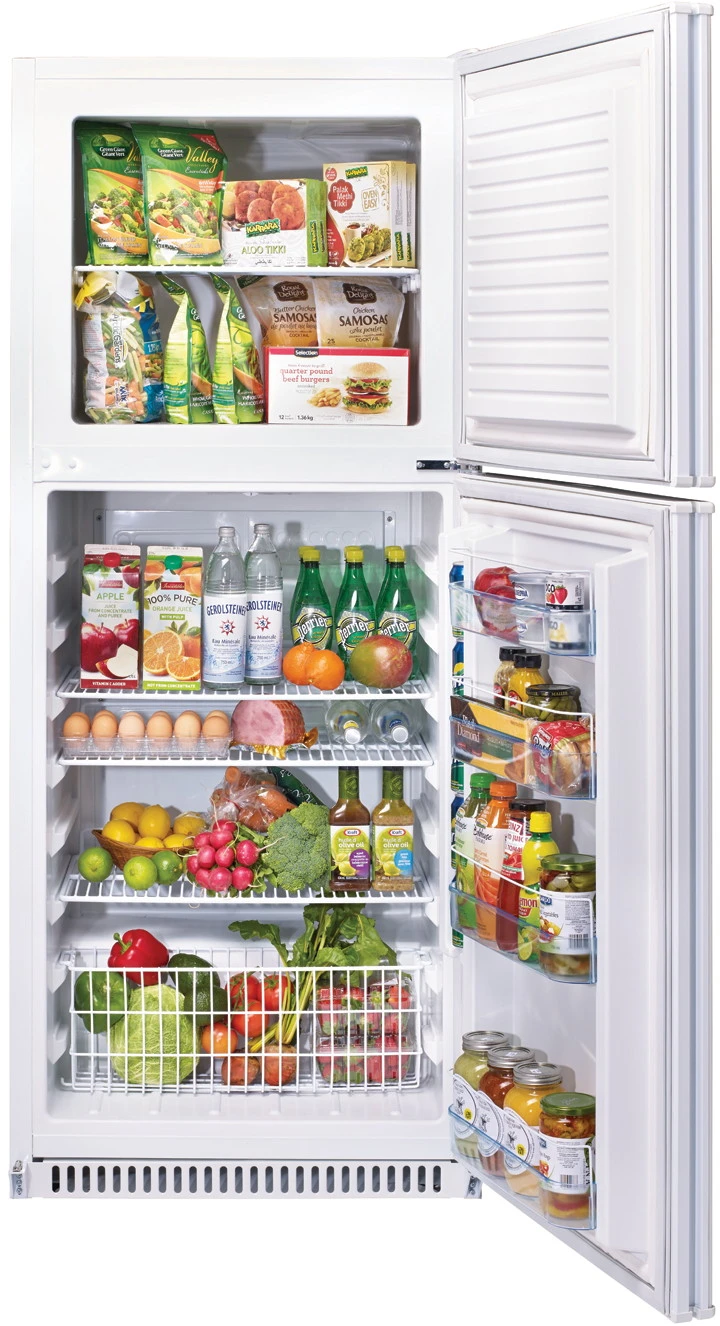

    UGP-470L

    9.0 cu. ft.

    10.3 cu. ft.

    16.6 cu. ft

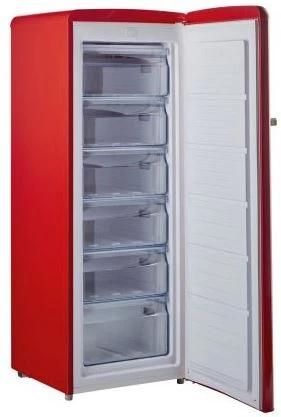

    New Upright Freezer  UGP-175L UF R

    6.1 Cu.Ft.





















    For smaller and portable DC powered refrigeration from Unique follow this LINK
