SMA

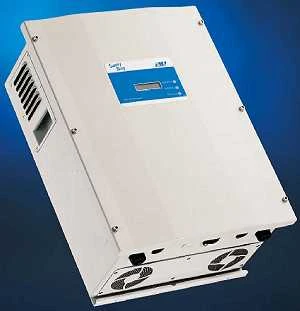

Sunny Boy 6000U
6kW Grid Tie Inverter

Now available in North America. Sunny Boy’s extensive track record in some of the world’s most demanding markets has made it the favorite among PV professionals everywhere. Over 250,000 Sunny Boy inverters have been installed throughout the world. Superior design, rock-solid German engineering and exceptional real-world efficiency have made Sunny Boy inverters the top choice for American solar designers.

The Sunny Mini Central 6000 provides the advantages of a transformer inverter combined with all monitoring and protection equipment (ENS) required for reliable operation of a PV-plant without separate disconnection unit.

  • Exceptional reliability, efficiency and energy capture ratio 5-year comprehensive warranty

  • Rugged stainless steel outdoor enclosure standard

  • Easy to install wall mount bracket system

  • Comprehensive SMA communications and data collection options

  • SMA’s modular commercial inverter design is expandable to virtually any size system

The SB6000U is designed for use with PV, fuel cell, wind-turbine, hydro-turbine and micro-turbine technologies.

The SB6000U follows SMA’s modular system design philosophy for utility, commercial and residential PV installations from 6kW and up. Automatic sensing of the site utility voltage makes installation trouble-free on almost any utility system. Just wire the inverter into any 208, 277 or 240 VAC system, make one internal jumper setting and the SB6000U does the rest.

The wide DC input voltage range allows connection to almost any type or model of PV module. Proven peak-power-point tracker results in maximum energy capture. The SB6000U uses the same SMA communication accessories as every other inverter in the Sunny Boy family. SMA offers a variety of hardware and software solutions from low cost wireless monitoring, to complex data acquisition systems that integrate large numbers of inverters with external sensors to networked PC’s and the internet.

Sunny Boy 6000U Technical Specifications

Input Values (208V)





Recommended max PV Power

PPV

6500 Wp STC

Max DC Power

PDC, max

5500 Wp PTC

DC Input Voltage Range

VDC

207 to 600 VDC

MPP Tracking Voltage Range

VPV

207 to 550 VDC

PV Start Voltage

VPV

270 VDC

Max input current

IPV, max

25 A

DC Voltage ripple

VPP

< 5%

DC Disconnectors



Optional external DC Disconnect/Breaker

Pole confusion protection



Short Circuit diode

Ground fault protection

IDif

> 1000 mA

Input Values (240V)





Recommended max PV Power

PPV

7500 Wp STC

Max DC Power

PDC, max

6300 Wp PTC

DC Input Voltage Range

VDC

234 to 600 VDC

MPP Tracking Voltage Range

VPV

234 to 550 VDC

PV Start Voltage

VPV

300 VDC

Max input current

IPV, max

25 A

DC Voltage ripple

VPP

< 5%

DC Disconnect



Optional external DC Disconnect/Breaker

Pole confusion protection



Short Circuit diode

Ground fault protection

IDif

> 1000 mA

Input Values (277V)





Recommended max PV Power

PPV

7500 Wp STC

Max DC Power

PDC, max

6300 Wp PTC

DC Input Voltage Range

VDC

234 to 600 VDC

MPP Tracking Voltage Range

VPV

234 to 550 VDC

PV Start Voltage

VPV

300 VDC

Max input current

IPV, max

25 A

DC Voltage ripple

VPP

< 5%

DC Disconnect



Optional external DC Disconnect/Breaker

Pole confusion protection



Short Circuit diode

Ground fault protection

IDif

> 1000 mA

Output Values (208V)





Max AC Power

PAC

5200 W

Total Harmonic Distortion

THDIAC

< 4% (With KVgrid < 2% and PAC > 0.5 PACnom)

Operating Range, Grid Voltage

VAC

183 V to 229 V

Operating Range, Grid Frequency

fAC

59.3 Hz - 60.5 Hz

Phase Shift (Ref. Fundamental)

cos(phi)

Output Values (240V)





Max AC Power

PAC

6000 W

Total Harmonic Distortion

THDIAC

< 4% (With KVgrid < 2% and PAC > 0.5 PACnom)

Operating Range, Grid Voltage

VAC

211 V to 264 V

Operating Range, Grid Frequency

fAC

59.3 Hz - 60.5 Hz

Phase Shift (Ref. Fundamental)

cos(phi)

Output Values (277V)





Max AC Power

PAC

6000 W

Total Harmonic Distortion

THDIAC

< 4% (With KVgrid < 2% and PAC > 0.5 PACnom)

Operating Range, Grid Voltage

VAC

244 V to 305 V

Operating Range, Grid Frequency

fAC

59.3 Hz - 60.5 Hz

Phase Shift (Ref. Fundamental)

cos(phi)

Output Protection





Islanding Protection



VAC; FAC designed to meet the requirements of UL 1741

Ground Fault Protection



IDIF; designed to mee the requirements of UL 1741

A C Disconnect



External AC Breaker

Short Circuit Protection



Current Controlled

Overvoltage Classification



III

Efficiency





Peak Efficiency



95 % (Rebate Efficiency)

Power Consumption





Internal consumption in operation



< 7 W

Internal consumption at night



0.25 W

American Standards





Hardware Safety



Designed to meet the requirements of UL 1741

Firmware Safely



Designed to meet the requirements of UL 1998

Power Quality



IEEE 519

Anti-Islanding



IEEE 929

Electro-Magnetic Interference



FCC Part 15 A & B

Size and Weight





Width



430 mm (16.9 in)

Height



600 mm (23.6 in)

Depth



250 mm (9.8 in)

Weight



63 kg (139 lbs)

Enclosure Ratings





NEMA Rating



NEMA 3R

Ambient Conditions





Ambient Temperature Range



-13°F to +140°F or -25°C to +60°C

Relative Humidity Level



0 to 100%
