System Sizing
Battery Free

12V and 24V DC Energy Efficient Refrigeration

Usually refrigeration is the largest electrical load on your energy system, improving refrigeration conditions in your home could mean major energy savings. Fortunately, the sun is shining when energy is most needed for refrigeration.

These highly efficient units with exceptionally low energy consumption require a smaller photovoltaic (PV) system for your refrigeration needs.  SunDanzer units feature 4.33" (110 mm) of polyurethane insulation and coated steel cabinets. The brushless DC motor compressor operates on 12 or 24 VDC. A patented low-frost system reduces frost build-up for low maintenance.

New! SunDanzer now has an AC powered Refrigerator and a Freezer for Hyper-Efficient electrically supplied homes and Off-Grid AC homes. (see bottom of this web page for specs. Dimensions are the same as the DC powered 165 models)

Features for All SunDanzer Models:

Energy-efficient
Automatic operation
Thick polyurethane insulation
Lockable lid
Interior light
Corrosion resistant coated steel exterior
Patented low-frost system
Easy to clean interior
Low maintenance



THRIFTY !

Model Size No. Baskets Description

Energy Usage @32C  @12V

DCR165 5.8 3 Fridge only 14 AHr/day
DCR225 8 4 Fridge only 17 AHr/day
DCF165 5.8 3 Freezer only 37 AHr/day
DCF225 8 4 Freezer only 44 AHr/day
DCF390 14.7 4 Freezer only 67 AHr/day
Model Number DCR165
Battery-powered refrigerator,  12/24V
Gross Capacity:  5.8 cu. ft./163 liters
Product Dimensions (W x D x H):  36.8 x 26.2 x 34.5 inches
 93.5 x 66.5 x 87.6 cm
Shipping Dimensions (W x D x H): 41 x 31 x 39 inches
104 x 79 x 99 cm
Shipping Weight:  125 lb. / 57 kg.
Model Number DCR225
Battery-powered refrigerator,  12/24V
Gross Capacity: 8.1 cu. ft./229 liters
Product Dimensions (W x D x H):  46.9 x 26.2 x 34.5 inches
119 x 66.5 x 87.6 cm
Shipping Dimensions (W x D x H):  54 x 31 x 39 inches
137 x 79 x 99 cm
Shipping Weight:  160 lb. / 73 kg.
Model Number DCF165
Battery-powered freezer,  12/24V
Gross Capacity:  5.8 cu. ft./163 liters
Product Dimensions (W x D x H):  36.8 x 26.2 x 34.5 inches
93.5 x 66.5 x 87.6 cm
Shipping Dimensions (W x D x H):  41 x 31 x 39 inches
104 x 79 x 99 cm
Shipping Weight: 1 25 lb. / 57 kg.
Model Number DCF390
Battery-powered freezer,  12/24V
Gross Capacity:  14.7cu. ft./390 liters
Product Dimensions (W x D x H):  63.3 x 28.7 x 34.3 inches
161 x 73 x 8787.6 cm
Shipping Dimensions (W x D x H):  66.5 x 31.1 x 36.6 inches
169 x 79 x 93 cm
Shipping Weight: 175 lb. / 79.3 kg.



 Specifications

Voltage requirement: 12 or 24 VDC
Refrigerant: R-134a
Polyurethane insulation: 11 cm (4.33")
Cable length: 2m (6 ft.)

More Features

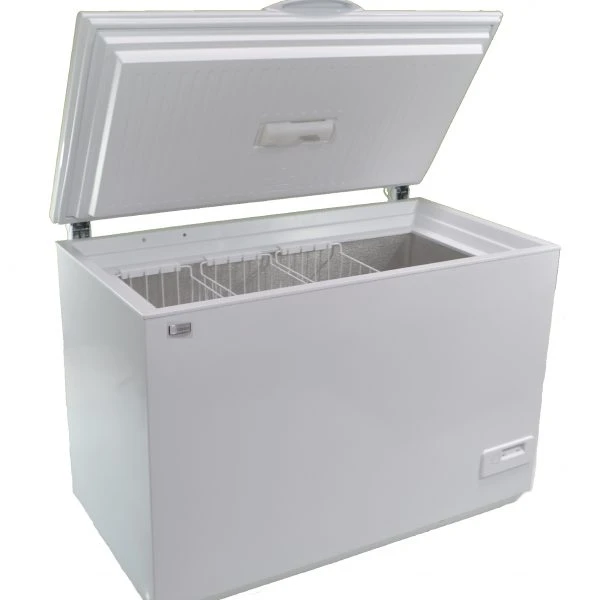

SunDanzer chest-style refrigerators and freezers are easy to clean using the drain hole at the bottom of the unit. With thick insulation and a refrigeration system optimized for solar.

 SunDanzer refrigerators and SunDanzer Freezers provide outstanding economical and reliable operation. SunDanzer cabinets are commercially produced by one of the world's leading appliance manufacturers.

High quality construction provides excellent reliability and a long life. The powder coated galvanized steel exterior is easy to clean. The zero maintenance, brushless, thermostatically controlled DC compressor operates on 12 or 24 VDC.

With the added insulation and a refrigeration system optimized for off-grid applications, this newest addition to the SunDanzer family of Energy Efficient refrigeration appliances will provide the same outstanding economical and reliable operation as our popular Chest Style units.

Low energy consumption is the key that allows SunDanzer refrigerators and freezers to be the most cost effective for use with power from solar, wind, fuel cells or batteries. This technology allows refrigeration in remote locations where it was previously unavailable or prohibitively expensive















DCF-390  14 cu. ft. 12/24V DC freezer

This 390 litre freezer unit has exceptionally low energy consumption requiring smaller, less expensive power systems and low operating expense

Electrical Consumption Table

Watt Hours per Day
Model 70 (21.1C) 90F (32.2C) 110F (43.3C)
DCR165      77      168      348
DCR225      90      198      393
DCF165      272      441      766
DCF225 360 532 817
DCF390   800
Amp Hours per Day @ 12V DC
Model 70 (21.1C) 90F (32.2C) 110F (43.3C)
DCR165      6.5      14.0      29.0
DCR225      7.5      16.5      32.7
DCF165      22.6      36.7      63.8
DCF225      30.0      44.3      68.1
DCF390   67
Amp Hours per Day @ 24V DC
Model 70 (21.1C) 90F (32.2C) 110F (43.3C)
DCR165      3.2      7.0      14.5
DCR225      3.8      8.2      16.4
DCF165      11.3      18.4      31.9
DCF225      15.0      22.1      34.1
DCF390   33.5













Had the boys up last weekend.  Fridge was a big hit.  Without a doubt it is the ultimate beer fridge (and everything else too).   Can't believe how much stuff you can put in it, especially cans of beer are made to measure, perfect fit.  I'm going to show it to everybody on the island.   Fantastic.

 Thanks again, Tony





 NEW AC powered 5.6 cu. ft. fridge and freezer.

Kilowatt Hours  per Day 115V AC
Model 70 (21.1C) 90F (32.2C) Temp Range
ACR165 0.085 kWhr./dy. 0.16 kWhr./dy. 30  to  48F ||  -1  to 8.9C
ACF165 0.45 kWhr./dy. 0.29 kWhr./dy. 0 to 23F || -17.8 to -5C
