Sterilight - Water Sterilization by Ultra Violet (UV) Light

Depending on sizing our UV lights use as little as 20W of power. A load carried by a 80 watt solar panel on an average summer day.  A point of use UV water sterilizer can use as little as 12W! ...about 0.288 kilowatt hours or in 12V speak 24 Ahr per day.

What follows are some samples of and extensive product line available.

Unless otherwise indicated, information contained on this  page is Copyright © R-Can Environmental Inc 2006

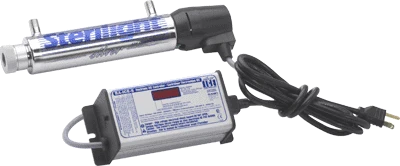

Small Point of use Sterilizer SQ-PA

The Sterilight SQ-PA provides point-of-use disinfection with a flow rate of 1.5 gpm (5.7 lpm). This modular system, incorporating our new Silver™ controller, is ideal for small POU applications such as post filtration, or as a pre or post application on a residential RO system. The Silver™ controller provides constant output current and a universal power input (100-240V./50-60Hz.), as well as visually displaying remaining lamp life and total days of operation. All this is packaged in a new water-tight case and comes fully CSA and CE compliant. Sterilume™-EX coated low pressure germicidal UV lamps are used to provide an economical way of treating water requiring a 99.99% reduction in bacteria and viruses.

 The SQ-PA is manufactured with a polished, 304 stainless steel, pressure rated tube and comes with ¼" MNPT connections. Quality is evident throughout the Silver platform ranging from quartz sleeves with fire-polished ends to seamless connections. Lamp change is easily accomplished without interrupting the water flow and the overmoulded connector can be removed without any additional tools.

Larger Potable Water Sterilizer  S8Q-PA







The Sterilight S8Q-PA provides point-of-entry disinfection with a flow rate of 10.0 gpm (37.9 lpm) at a 30 mJ/cm² dose (7.7 gpm (29.3 lpm) if a dose of 40 mJ/cm² is required.) This modular system, incorporating our new Silver™ controller, is ideal for whole home treatment of an entire home or cottage. Placed prior to the water heater, all the water in the home, including the hot water will receive disinfected water. The Silver™ controller provides constant output current and a universal power input (100-240V./50-60Hz.), as well as visually displaying remaining lamp life and total days of operation. All this is packaged in a new water-tight case and come fully CSA and CE compliant. Sterilume™-EX coated low pressure germicidal UV lamps are used to provide an economical way of treating water requiring a 99.99% reduction in bacteria and viruses.

The S8Q-PA is manufactured with a polished, 304 stainless steel, pressure rated tube and comes with ¾ " MNPT connections. Quality is evident throughout the Silver platform ranging from quartz sleeves with fire-polished ends to seamless connections. Lamp change is easily accomplished without interrupting the water flow and the overmoulded connector can be removed without any additional tools.

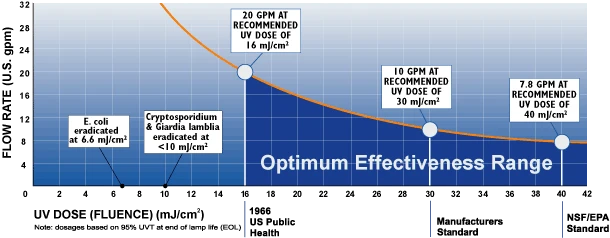

The chart represents the effectiveness of the 8GPM S8Q-PA unit above based on different government and inducstry measurement criteria



Serilight Models

SQ-PA

S1Q-PA

S2Q-PA

S5Q-PA

S8Q-PA

S12Q-PA

Flow Rate(95% UVT eol)

US Public Health(16mJ/cm²)

7.5 lpm
(2.0 gpm)

12.3 lpm
(3.2 gpm)

15.0 lpm
(4.0 gpm)

41.6 lpm
(11.0 gpm)

75.7 lpm
(20.0 gpm)

110.0 lpm
(29.1 gpm)

R-Can Standard(30mJ/cm²)

5.7 lpm
(1.5 gpm)

7.5 lpm
(2.0 gpm)

11.0 lpm
(2.9 gpm)

22.7 lpm
(6.0 gpm)

37.9 lpm
(10.0 gpm)

57.0 lpm
(15.1 gpm)

NSF/EPA(40mJ/cm²)

3.8 lpm
(1.0 gpm)

5.5 lpm
(1.5 gpm)

7.5 lpm
(2.0 gpm)

17.0 lpm
(4.5 gpm)

29.3 lpm
(7.7 gpm)

42.0 lpm
(11.1 gpm)

Dimensions

Length

30.5 cm

38.1 cm

43.2 cm

53.3 cm

90.0 cm

94.0 cm

Diameter

5.2 cm

6.4 cm

8.9 cm

Controller

19 x 8.1 x 6.4 cm

Inlet/Outlet Port Size

1/4" MNPT

1/2" MNPT

3/4" MNPT

Combo 3/4" FNPT, 1" MNPT

Shipping Weight

2.3 kg)

2.7 kg

4.5 kg

5.9 kg

Electrical













Volts

100- 240V50-60Hz

Power Consumption

15 W

19 W

22 W

30 W

46 W

48 W

Lamp Power

10 W

14 W

17 W

24 W

37 W

39 W

Lamps/Quartz Sleeves

Yes

Ambient Temperature

2-40 °C(36-104 °F)

Max Operating Pressure

8.62 bar(125 PSI)

Audible Lamp Failure

Yes

Visual "Power On"

Yes

Reactor Chamber Material

304 S.S. (316L available on request)

Lamp Type

Sterilume™-EX(standard-output)

Visual Lamp Life Remaining

Yes

Total Running Time

Yes
