Portable PV

DC FRIDGE/FREEZERS (-18°C)

These AC/DC powered fridge/freezers are versatile, portable and equipped with a Danfoss/Secop compressor: the world's most reliable compact DC cooling system.

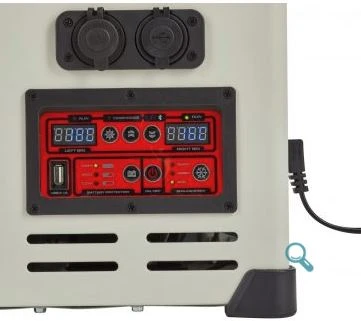

Individual compartment temperature control enables customizable fridge/freezer combinations, and its rugged construction and digital control panel make this system essential for off-grid life - can operate on the road, at home, or off-grid!

Power the fridge/freezer via deep-cell battery with a solar panel (fixed, or with Unique's portable solar panel system, model UGP100SWP see below), or with a generator at the cottage, camp and during black-outs.  you can use the fridge/freezer on the road with a 12V DC connection.

These fridge freezers can be configured with each side the same or different or you can turn one side off to save power.

·



     Features

  •          Danfoss/ Secop compressor – the world’s leading DC compressor

  • ·         Operates on DC or AC power (3 stages for battery protection)

  • ·         Chest-style fridge/freezer for high efficiency while using low energy consumption

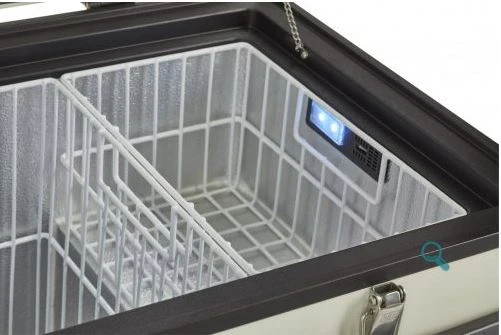

  • ·         Dual compartments enable fridge/freezer combinations

  • ·         Bluetooth enabled APP for use from your iphone / android device

  • ·         Individual temperature controls for each compartment allows either compartment to be shut off to save energy

  • ·         Rugged side handles (portable)

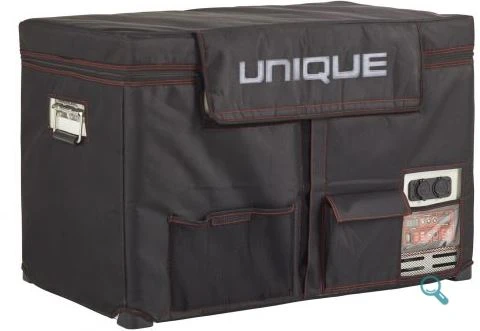

  • ·         Includes all connectors and protective insulated bag

  •            AC/DC converter included

  • ·         USB ports x 3 - 5V 2.1A

  • ·         Thermostat

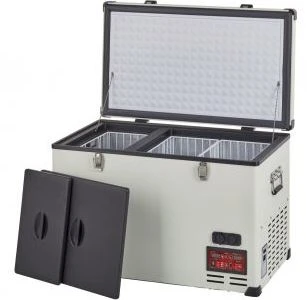

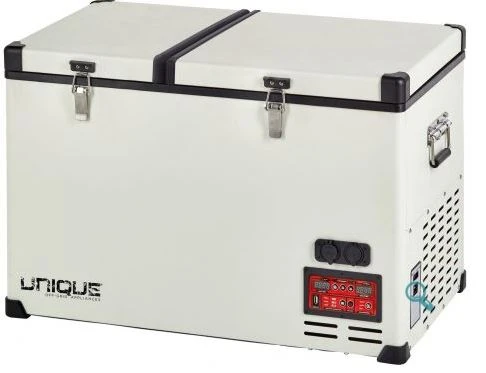

MODEL UGP-80L1 UGP-120L1 W
SIZE: 80 litres / 2.8 cu./ft. 120 litres / 4.2 cu./ft.
OPERATION: 11OV / 12V / 24V 11OV/12V/24V
DIMENSIONS W 31.5" x D 20.9" x H 18.5" W 27.9" x D 34" x H 20.8"
    W 70.8 x 86.4 x 52.8 cm
  Larger Compartment 1   L 13.9” x W 8.4” x D 23.2”
  Larger Compartment 2   L 13.9” x W 8.4” x D 23.2”
  Smaller Compartment   L 13.9” x W 8.4” x D 14.3”
WEIGHT: 29 kg/63.9 lbs 35 kg/77 lbs
CONNECTIONS: Car DC connector, battery gator clips and Car DC connector, battery gator clips and
  AC/DC converter included AC/DC converter included
DC POWER: DC 12V / 24V + AC/DC adapter included DC 12V / 24V + AC/DC adapter included
TOTAL WATT HR DRAW: 378 Wh/24 hrs (h g. side set to +5° c / Sm. side set to-13 538 Wh/24 hrs
TOTAL AMP HR DRAW: 9.3 Ah/24 hrs (tr9.side setto+5°c/Sm.sidesetto-13°c) 18.5 Ah/24 hrs
CONSUMPTION: 33 W/hr. 19.5 W
AV. RUN CURRENT: 2.7 amps on 12V DC 3.3 amps on 12V DC    1.6A @24V DC
TEMPERATURE RANGE: -22°Cto+20°C(in+7.6°F to+43°F -22˚C/-7.6˚F to +20˚C/68˚F
  ambient temperature)  in ambient +1˚C/34˚F to +43˚C/109˚F)




FEATURES: • Danfoss/Secop compressor  the world's leading DC compressor
• Chest-style fridge/freezer is high efficiency while using a low energy consumption
• Dual compartments enable fridge/freezer combinations
• Individual temperature controls for each compartment
• Rugged side handles for easy tie-down/portability and tie-down/portability
• Thermostat
• Power source indicator

This unit can be operated either as a fridge or as a freezer!

MODEL:      UGP-50L1

 SIZE:          50 litres / 1.8 cu./ft.

 OPERATION: DC Power 12V / 24V

DIMENSIONS: unboxed  H 30.3” x W 26.4” x D 23”
  H 77 cm x W 67 cm x D 58.4 cm
 WEIGHT:  29.5 kg/65 lbs

 TOTAL WATT HR DRAW:  (as freezer) 278 Wh/24 hrs (24V DC)
556 Wh/24 hrs (12V DC)
TOTAL AMP HR DRAW:       (as freezer)  20 Ah/24 hrs (24V DC)
40 Ah/24 hrs (12V DC)
 POWER CONSUMPTION: 27 W on 12V & 26 W on 24V

 AV. RUN CURRENT:  2A on 12V & 1A on 24V
 TEMP. RANGE:  - 20°C to +20°C

Note: this unit was only tested as a fridge, a freezer typically requires 40% or less power required by the same size freezer.



 FEATURES:

• 4.3” (11 cm) of insulation for super-efficient operation/freezing

• Danfoss/Secop compressor - the world’s leading DC compressor (2 year warranty)

• 12V or 24V DC with low voltage disconnect battery protection

• Compact chest-style design can be used as a freezer or fridge (adjustable thermostat)

• Durable galvanized steel exterior construction

• Easy to clean aluminium interior with bottom drain

• Environmentally friendly R134a refrigerant is CFC-free

• Heavy duty side handles
