OutBack
inverters feature modularity so systems could be stacked in many configurations
and easily expanded to build systems up to 36 kW of total power.

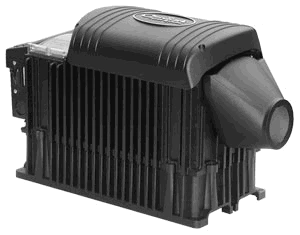

The flagship
Outback FX Series
Weather-resistant uses
a sealed chassis that can operate in the harshest environmental conditions such
as high humidity and corrosive salt air.
|
|
Sealed Models |
Vented Models |
|
FX2012T |
FX2524T |
FX3048T |
VFX2812 |
VFX3524 |
VFX3648 |
|
Nominal DC Input Voltage |
12 VDC |
24 VDC |
48 VDC |
12 VDC |
24 VDC |
48 VDC |
|
Continuous Power Rating at 25° C |
2000 VA |
2500 VA |
3000 VA |
2800 VA |
3500 VA |
3600 VA |
|
AC Voltage/Frequency |
120 VAC 60 Hz |
120 VAC 60 Hz |
120 VAC 60 Hz |
120 VAC 60 Hz |
120 VAC 60 Hz |
120 VAC 60 Hz |
|
Continuous AC RMS Output at 25° C |
17.0 amps AC |
20.8 amps AC |
25.0 amps AC |
23.3 amps AC |
29.2 amps AC |
30.0 amps AC |
|
Full Idle Power |
≈ 20 Watts |
≈ 23 Watts |
≈ 23 Watts |
≈ 20 Watts |
≈ 20 Watts |
≈ 23 Watts |
|
Search |
≈ 6 Watts |
≈ 6 Watts |
≈ 6 Watts |
≈ 6 Watts |
≈ 6 Watts |
≈ 6 Watts |
|
Typical Efficiency |
90% |
93% |
93% |
90% |
92% |
93% |
|
Typical Total Harmonic Distortion |
2% |
2% |
2% |
2% |
2% |
2% |
|
Maximum |
5% |
5% |
5% |
5% |
5% |
5% |
|
Output Voltage Regulation |
± 2% |
± 2% |
± 2% |
± 2% |
± 2% |
± 2% |
|
Peak Maximum Output Current |
56 amps AC |
70 amps AC |
70 amps AC |
56 amps AC |
70 amps AC |
70 amps AC |
|
RMS |
40 amps AC |
50 amps AC |
50 amps AC |
40 amps AC |
50 amps AC |
50 amps AC |
|
Surge AC Overload Capability |
4800 VA |
6000 VA |
6000 VA |
4800 VA |
6000 VA |
6000 VA |
|
5 Second |
4000 VA |
4800 VA |
4800 VA |
4000 VA |
5000 VA |
5000 VA |
|
30 Minutes |
2500 VA |
3200 VA |
3200 VA |
3200 VA |
4000 VA |
4000 VA |
|
AC Input Current Maximum |
60 amps AC |
60 amps AC |
60 amps AC |
60 amps AC |
60 amps AC |
60 amps AC |
|
AC Input Voltage Range (MATE Adjustable) |
80 to 150 VAC |
80 to 150 VAC |
80 to 150 VAC |
80 to 150 VAC |
80 to 150 VAC |
80 to 150 VAC |
|
AC Input Frequency Range |
55 to 66 Hz |
55 to 66 Hz |
55 to 66 Hz |
54 to 66 Hz |
54 to 66 Hz |
54 to 66 Hz |
|
DC Input Voltage Range |
10.5 to 17VDC |
21 to 34 VDC |
42 to 68 VDC |
10.5 to 17 VDC |
21 to 34 VDC |
42 to 68 VDC |
|
Continuous Battery Charge Output |
80 amps DC |
55 amps DC |
35 amps DC |
125 amps DC |
82 amps DC |
45 amps DC |
|
Warranty |
Standard 5 year |
Standard 5 year |
|
Unit Weight |
62
lbs (29 kg) |
61
lbs (28 kg) |
|
Shipping |
67 lbs (31 kg) |
67 lbs (31 kg) |
|
Unit Dimensions (H x W x L) |
13 x 8.25 x 16.25" (33 x 21 x 41 cm) |
12 x 8.25 x 16.25" (30 x 21 x 41 cm) |
|
Shipping |
21.75 x 13 x 22" (55 x 33 x 56 cm) |
21.75 x 13 x 22" (55 x 33 x 56 cm) |
 Two year warranty.
Features:
-
Smaller
design takes less wall space
-
Fully
sealed (FX and GTFX models) or bug-proof (VFX and GVFX) Grid tie compatible without
additional accessories
-
True
pure sine wave output instead of 34 steps per cycle offers lower harmonic
distortion
-
Better able to start large motor loads
-
Higher efficiency, especially at higher power loads
-
Built-in generator start software
-
Great
dollars per watt value
-
Field
serviceable with end user board swaps
-
Stackable in series/parallel for 120/240 VAC and 3 phase, up to 36 kW
In
2004 OutBack offered fully sealed models in both 24 and 48 V, with 500 watts more
power than the original FX series. These are ideal for remote sites, humid areas
or in mobile applications such as boats or RVs. With an all-aluminium chassis,
conformal coated circuit boards and a gasketed design, the inverter is fully
protected from some of the one of the major causes of inverter failure:
corrosion and insects.
The FX
series is designed to survive in environments that would normally destroy other
inverter/chargers. Protection for internal components is provided by our
die-cast aluminium chassis with a powder coated finish to prevent corrosion.
Internal and external cooling fins allow for passive heat transfer, enabling
peak operating efficiencies as high as 93% and looking cool while doing it.
Water and small particles
are kept out through the generous use of gaskets and 0-ring seals on all seams
and openings. A protective conformal coating on all circuit boards provides the
final line of defence against corrosion.
The now standard
externally mounted “TURBO” cooling system improves performance in hot conditions
The
VFX series feature higher output and exceptional dollars per watt value. They have
conformal coated circuit boards, stainless vent screens and a washable foam
filter on the air inlet. These models are ideal for indoor installations.
GVFX series
inverters are designed for grid tie applications.
