Outback Boards

Outback FLEXware Power Systems



Assembled and Tested Systems



NEC-compliant pre-assembled power systems include inverter (s), AC enclosure inverter bypass, DC enclosure, inverter disconnect breaker and shunt, all mounted to a back plate and wired. Charge controllers and battery cables and displays are not included. Charge controllers, additional AC and DC input and load breakers can be added at the time of pre-assembly or in the field. Some options are listed below. Many other options are available.  ETL Listed to UL standards.

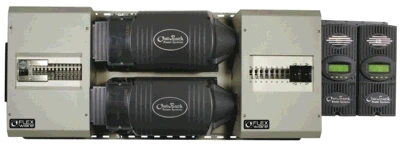

FLEXware 500 Power System

The FLEXware 500-based system will satisfy most renewable energy applications with such as residential, light commercial or rural electrification systems by supporting up to two FX Series inverter/chargers and up to two MX charge controllers.

FLEXware 500 AC and DC enclosures accommodate all the essential protective devices while providing room for additional breakers and large cable connections. For added versatility the FLEXware 500 based system can also be mounted vertically or horizontally.  A FLEXware 500 systems come with one Remote Temperature Sensor (RTS), and IOB-D-120/240VAC and HUB4.  Two-inverter systems also come with a X-240**.

For ease of future expandability we frequently implement a FLEXware 500 system with a single Outback inverter. Most frequently expansion is not required for greater inverter output but for more battery charge capacity within the system.

Max Number of Outback inverters  : 2
Max Large DC Breakers 175-250A  : 2

Max Med.  DC Breakers 125A        : 3
Max Small  DC Breakers 1-80A      : 8
Max 1/2" wide DIN rail AC Breakers: 12
Qty of Ground Fault Protectors     : 1
Ground Bus Bar (standard)           : 2
X-240** Auto Transformer          : 1
500A DC current Shunt (standard): 1 (2 optional)

43" (109cm) Wide, 20.5" (52cm) High, 13" (33cm) depth

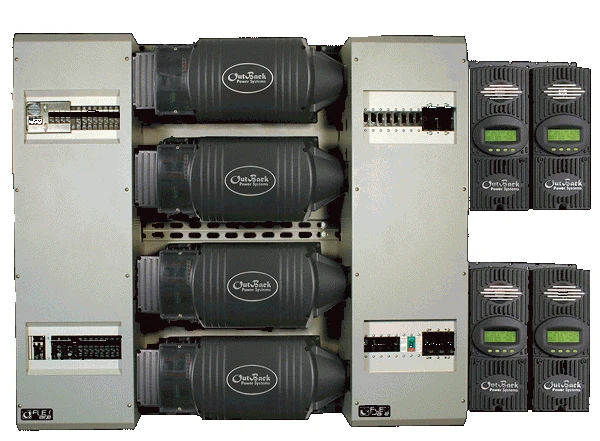

FLEXware 1000 Power System

The FLEXware 1000-based system can be utilized in applications with greater power requirements such as large residential, commercial or mini-grid projects. The FLEXware 1000 system architecture is capable of supporting up to four FX Series inverter/chargers, four MX charge controllers, and all the required AC and DC components and wiring.

FLEXware 1000 is easily expandable for large and complex systems. FLEXware 1000 AC and DC enclosures accommodate all of the essential protective devices while still providing room for additional breakers and large cable connections.

Included are mounting provisions for three DC shunts, there is sufficient space for for the inputs of multi-channel amp-hour meters.  In addition to the ability to be mounted horizontally, for added versatility a FLEXware 1000-based system can also be mounted vertically. FLEXware 1000 systems come with one RTS, and IOB-Q-120/240VAC, HUB10 and X-240**.

Max Number of Outback inverters  : 4
Max Large DC Breakers 175-250A  : 6
Max Med.  DC Breakers 125A        : 9
Max Small  DC Breakers 1-80A      : 11
Max 1/2" wide DIN rail AC Breakers: 24
Qty of Ground Fault Protectors     : 1-2
Ground Bus Bar (standard)           : 2
X-240** Auto Transformer          : 1
1000A DC current Shunt (std):      1 (2 500A optional)

46.3" (118cm) Wide, 41" (104cm) High,13" (33cm) depth

FLEXware MP is a one piece, powder coated aluminum mounting plate for FW500 and FW1000 systems. The FW-MP make installation quick and easy by including all of the necessary stainless steel hardware to mount both the AC and DC enclosures, inverter/chargers and breakers. A single FW-MP accommodates a complete FLEXware 500 system. Two FW-MP are required for a complete FLEXware 1000 system.



**The X-240 is a 4kVA rated autoformer which can be used to step up or step down 120VAC/240VAC. It is most often used in the balancing configuration for stacked FX systems. In this way loads on 2 legs can be balanced on the inverters.
