MidNite E-Panel

MidNite Solar E-Panel

The MidNite Solar E-Panel is a quick, complete and easy way to install an OutBack, Magnum or Xantrex SW or TR inverter. The E-Panel is equipped with basic over-current protection and disconnects required to install your renewable energy system. The E-Panel can be expanded as you enhance your system.

OutBack and Magnum inverters mount on a unique hinged door to keep the footprint of the system as small as possible. Mounting brackets are included to aid in one person installations.

Description:
Pre-wired (Save Install Time) E-panel Outback
White Powder Aluminum (AL)
Right Hand Door Hinge (or Specify "L")
Knockouts for AC and DC Conduits
Cut Outs for Two GFCI Outlets

Includes:
Six Din Rail Slots (ex: PV, Wind, Hydro, or AC Distribution)
500Amp/ 50mv Shunt (for Bat.)
Pre-wired 50 Amp 240 VAC Inverter AC Bypass
Pre-wired 50 Amp 240 VAC Input Disconnect
Bus Bar for Bat. (+), Bat. (-), and Ground
Mounting Hardware for for Inverter and Charge Controller (CCB)
Snap in Plastic Conduit for AC, MATE, and RTS
Mounting Hardware for Hanging E-panel on Wall
Heavy Duty 175 Amp AC Distribution block
CCB
DC Inverter Battery Breaker (125Amp, 175Amp, or 250 Amp)
Internal Inverter Cables

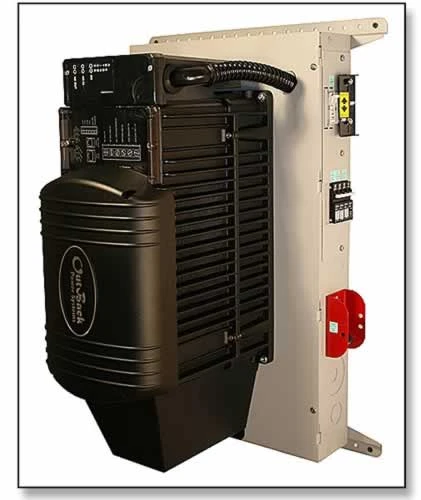

MidNite Solar E-Panel for Outback Inverter Models

Amps	DC Breaker	Steel – Gray Colour	Steel – Gray Left Hinge	Steel Gray 18" Wide	Aluminium White	Aluminium White Left Hinge
125	125	MNE125ST	MNE125ST-L		MNE125AL	MNE125AL-L
175	175	MNE175ST	MNE175ST-L	MNE175STS	MNE175AL	MNE175AL-L
250	250	MNE250ST	MNE250ST-L	MNE250STS	MNE250AL	MNE250AL-L

MidNite Solar E-Panel for Xantrex SW and DR Inverter Models

The E-Panel Lite for Xantrex inverters mounts next to the inverter. Main breaker, inverters cables, a 500-amp/50mv shunt for battery monitoring systems, 175-amp AC-power distribution block, 50-amp AC-input disconnect for generator or utility, 50-amp AC bypass switch are included and pre-wired. It comes with a mounting bracket for an OutBack FM60. Cut outs for mounting up to six additional 13mm wide DIN rail mount breakers are provided as well as a cut out for a GFCI style AC outlet.

Amps	DC Breaker	Steel – Gray Colour
125	125	MNE125ST
175	175	MNE175ST
250	250	MNE250ST

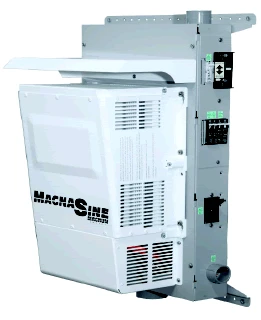

MidNite Solar E-Panel for Magnum Inverters

Amps	DC Breaker	Steel – Gray Colour	Steel - White Colour
175	175	MNE175STM
240	250	MNE250STM	MNE250STS
250/240V	250		MNE250STM-40
