INVERTERS | INVERTER/CHARGERS | ACCESSORIES

The Magnum-Dimensions brand began as two well-known inverter companies, Dimensions Inverters and Magnum Energy. Dimensions Inverters joined Sensata Technologies in 2007 and Magnum Energy in 2014. Under the Magnum-Dimensions brand, Sensata Technologies continues to manufacture exceptional inverters, inverter/chargers, and accessories catering to mobile applications, including utilities, corporate fleets, RV, marine, and  Trucks; renewable energy applications, and the export market. Manufactured in Everett, Washington, and St. Paul, Minnesota, and shipped worldwide.  Magnum Inverters offer premium performance at economical prices.

MS-PAE 120/240V Series Inverter/Charger is currently our most popular Inverter.  It is a pure sine wave inverter who's unique design of the MS-PAE Series can provide 120 and 240 volts output in one unit, eliminating the need to stack two units together to get 240 volts. A Power Factor Corrected (PFC) charger is built into this and all other all Magnum inverter chargers.

The MS-PAE Series comes in 24 and 48 volt configurations and can operate with remote monitoring/control (RC and ARC), automatic Generator start (AGS-N) and battery monitoring (BMK)

 MS-Series 120V Inverter/Charger

For those that will never require 240V equipment to be powered and do not have a generator that produces 240V more efficiently than 120V the MS 120V series is a robust and well behaved, well priced and better than most on the market.

36 month warranty

State of the art battery charger design using power factor correction techniques, innovative first in modified sine wave platforms. Magnum's innovation is a Power Factor Corrected Sinewave Charger that works equally well on low generator or shore power voltages and uses significantly less AC amps at full output. For example, Magnum Chargers need only 15 amps of AC power to deliver 100 DC amps of charge current, compared to 23 amps with competitive products.  Magnum's unique die-cast aluminum base allows full ratings up to 45C for superior high temperature operation.



The ME Series Inverter
The ME Series Inverter/ Charger from Magnum Energy -- A new generation inverter designed specifically for rugged recreational vehicle use. The ME Series is powerful, easy-to-use, and best of all, cost effective.

RD Series Inverter
RD Series Inverter/ Charger - inverter designed specifically for off grid use. The RD Series is powerful, easy-to-use, and best of all, cost effective.

MS Series Inverter
The MS Series Inverter/Charger - a new pure sine wave inverter designed specifically for the most demanding mobile and off grid applications. The MS Series is powerful, easy-to-use, and best of all, cost effective. Install the MS Series in four easy steps: simply connect the inverter's output to your distribution circuits or electrical panel, connect your shore power cable (AC) to the inverter's easy-to-reach terminal block, connect the batteries, and switch on the power.

The MS Series is ETL listed to the stringent requirements of UL/cUL 458 and CSA C22.2 #107.1-01

Features:

  • Rugged design suitable for RV, fleet and marine use

  • Four stage battery charging including "Battery Saver" and equalize modes

  • Fully adjustable load sharing

  • 50 Amp dual transfer switching to accommodate 120/240 V service

  • Aluminum case & conformal coated circuit boards

  • Easily field serviceable with replaceable boards

  • Stackable for 120/240 VAC output

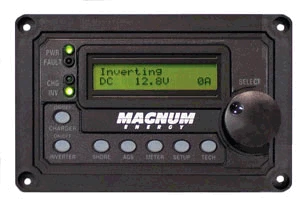

  • Optional remote allows full programming of inverter set-points, and displays battery voltage and inverter output.

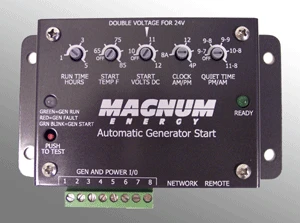

Auto Generator Start
Automatically sends a signal to start your generator when battery voltage taking temperature into account.

Link to Magnum Energy Products

For more information on renewable energy, wind turbines and other off grid systems call 1-888-810-4709 or email info@stratenergy.ca
